$5,399.00

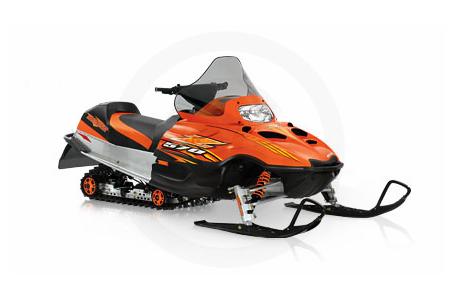

2007 Arctic Cat Z 570
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

FLICK IT WHERE YOU WANT IT. The powerful, high-tech, fan-cooled engine and light weight let you hot-dog it like you mean it.

    SPECIFICATION
    • Model Name: Z 570
    • Engine: Suzuki
    • Bore x Stroke: 73.8 mm x 66 mm
    • Lubrication: Oil injection
    • Type, Displacement, Cooling and Cylinders: 2-stroke, 565, fan, 2
    • Estimated Horsepower: 62.5
    • Ignition: CDI
    • Carburetion: 2 x VM 34
    • Exhaust: Tuned pipe & canister
    • Alternator: 210 watts @ 3,000 RPM
    • Drive clutch: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam)
    • Front chassis: Aluminum
    • Rear chassis: Aluminum with Extra Travel Tunnel (ETT)
    • Ski stance (In.): 41
    • Ski material: UHMW plastic saddeless ski
    • Ski carbides: Standard
    • Front suspension: AWS V double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    • Front Travel (In.): 8.4
    • Rear suspension: FasTrack Long-Travel System slide-rail, adjustable torsion springs, hydraulic twin tube shocks, Torque Sensing Link rear arm
    • Rear Travel (In.): 13.5
    • Track: Rubber / fiber reinforced
    • Track width x length x lug (In.): 15 x 121 x .85 Quiet track
    • Brakes: Hydraulic disc
    • Fuel capacity (Gal.): 11.7
    • Length x Width (In.): 112 x 47
    • Estimated dry weight (lbs.): 463
    • Number of Riders: 1
    • Headlight: Halogen (3-bulb)
    • Standard: Speedometer, Trip Odometer, Mechanical Gas Gauge, Low Oil Light, Hand Warmer, Thumb Warmer, Spark Plug Holder
    • Optional: Tachometer, Electric Start, Reverse, Mirrors, High Windsheild, Tether Switch, 2-Passenger Seat, Rack, Hitch
    • Color options: Orange

    Specifications

    Engine
    Engine Type 2-Stroke Suzuki
    Displacement 565 cc
    Bore x Stroke 73.8 mm x 66 mm
    Cylinders 2
    Engine Cooling Fan
    Carburetion 2 x VM 34
    Ignition CDI
    Exhaust Tuned pipe & canister
    Alternator 210 watts @ 3000 rpm
    Drivetrain
    Brake Type Hydraulic Disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam)
    Suspension
    Front Suspension AWS V double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    Front Travel 8.4 in.
    Rear Suspension FasTrack Long-Travel System slide-rail, adjustable tortion springs, hydraulic twin tube shocks, Torque Sensing Link rear arm
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddeless ski
    Ski Stance 41 in.
    Track Type Rubber / fiber reinforced Quiet track
    Track Dimensions 15" x 121" x .85"
    General
    Speedometer Standard
    Tachometer Optional
    Odometer Standard: Trip
    Headlight Standard
    Fuel Capacity 11.7 gal.
    Dry Weight 463 lbs.
    Windshield Optional: High windshield
    Color Orange
    Options
    Electric Start Optional
    Hand & Thumb Warmers Standard
    Reverse Optional
    Mirrors Optional

    Compare Models

    		 Print








    Year 2007
    Manufacturer Arctic Cat
    Model Z 570
    Style Performance
    MSRP* $5,399.00
    Drivetrain
    Brake Type Hydraulic Disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam)
    Engine
    Engine Type 2-Stroke Suzuki
    Displacement 565 cc
    Bore x Stroke 73.8 mm x 66 mm
    Cylinders 2
    Engine Cooling Fan
    Carburetion 2 x VM 34
    Ignition CDI
    Exhaust Tuned pipe & canister
    Alternator 210 watts @ 3000 rpm
    General
    Speedometer Standard
    Tachometer Optional
    Odometer Standard: Trip
    Headlight Standard
    Fuel Capacity 11.7 gal.
    Dry Weight 463 lbs.
    Windshield Optional: High windshield
    Color Orange
    Warranty
    Options
    Electric Start Optional
    Hand & Thumb Warmers Standard
    Reverse Optional
    Mirrors Optional
    Suspension
    Front Suspension AWS V double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    Front Travel 8.4 in.
    Rear Suspension FasTrack Long-Travel System slide-rail, adjustable tortion springs, hydraulic twin tube shocks, Torque Sensing Link rear arm
    Rear Travel 13.5 in.
    Ski Type UHMW plastic saddeless ski
    Ski Stance 41 in.
    Track Type Rubber / fiber reinforced Quiet track
    Track Dimensions 15" x 121" x .85"
